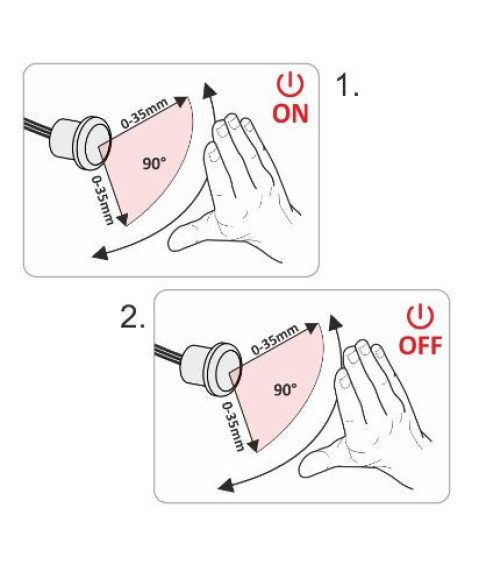

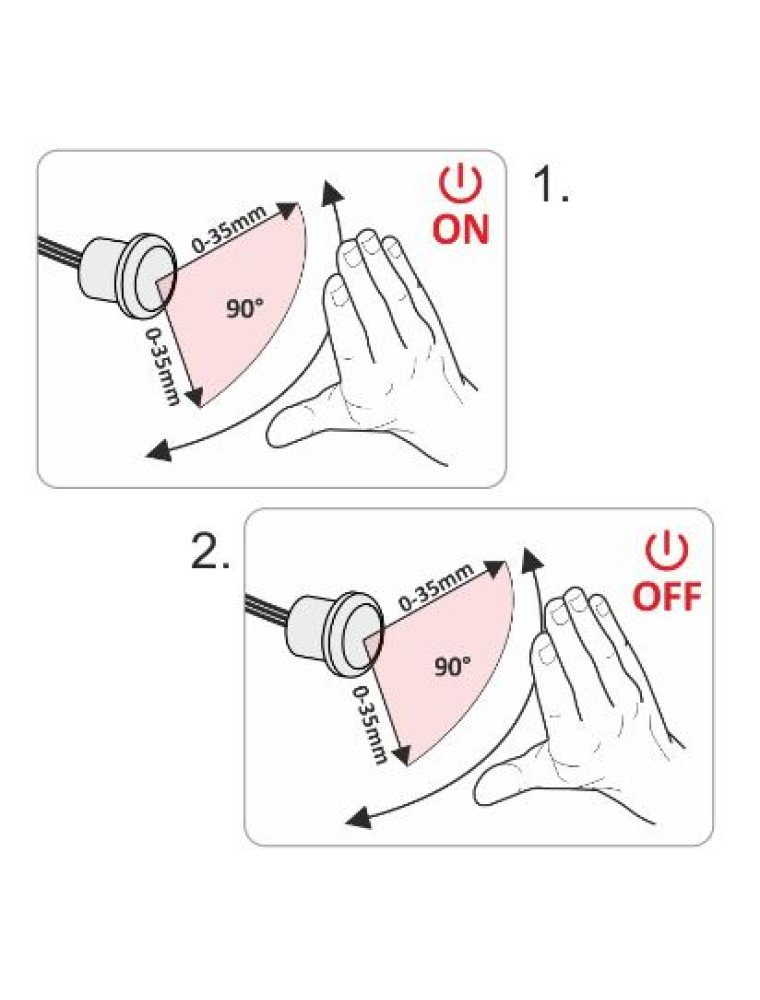

The IR K1 proximity switch provides non-contact on/off lighting with a total power of 500W. The switch turns on and off the lighting by recording movement in the area of 35 mm and an angle of 90 degrees. Movement around the sensor (up to 35 mm) turns on the lighting, and re-movement around the sensor turns off the lighting. Mounting description: Drill a hole with a diameter of 12 mm at the sensor head mounting location. Gently insert the sensor head into the mounting hole, then connect the sensor plug to the switch.
| Catalog number | 970066 |
| Brand | DL |
| Product Code | WYL-IR-K1-500W |
| EAN Code | N/A |
| Input voltage | 230V AC |
| Current | N/A |
| Power | 500W |
| IP Rating | IP20 |
| Body Colour | White |
| Dimmable | No |
| Size of product | N/A |
| Frequency | N/A |
| Touch | Proximity |
| Remote Operated | No |
| Switch Type | Non Touch - Proximity |
| Control from the app | No |
| Memory Capacity | N/A |
| Installation Type | Recessed |

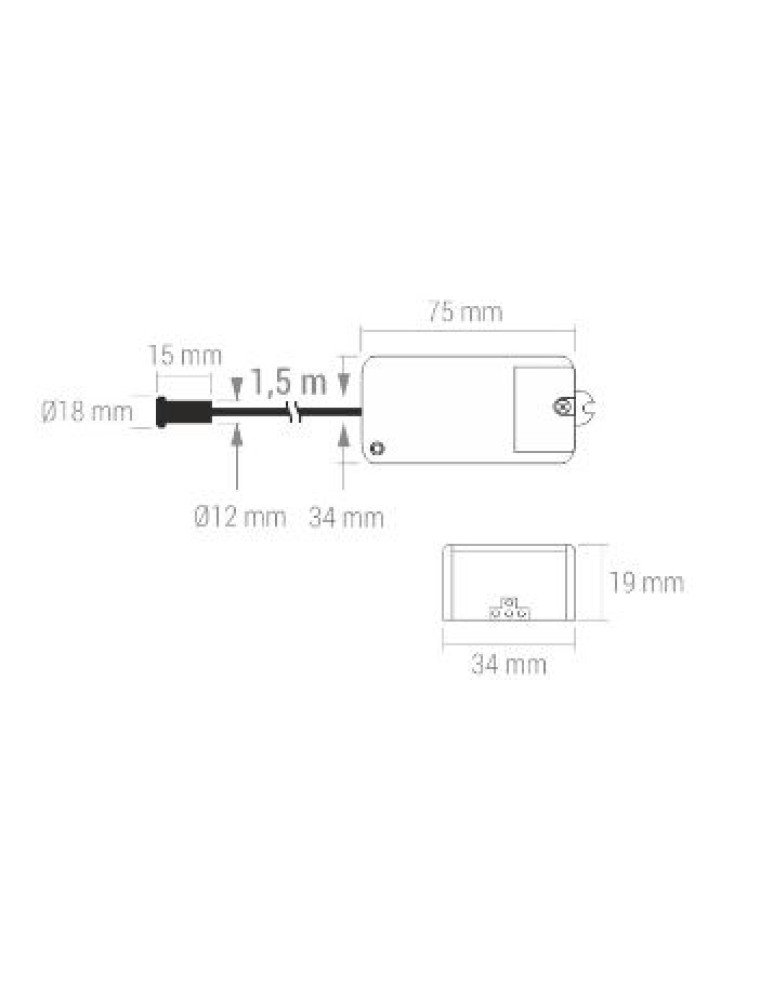

| Mounting Hole | 12mm |
| Material | PC |
| Working Temperature | -20 ~ +55°C |
| Average Life Span | N/A |
| Warranty | 2 years |

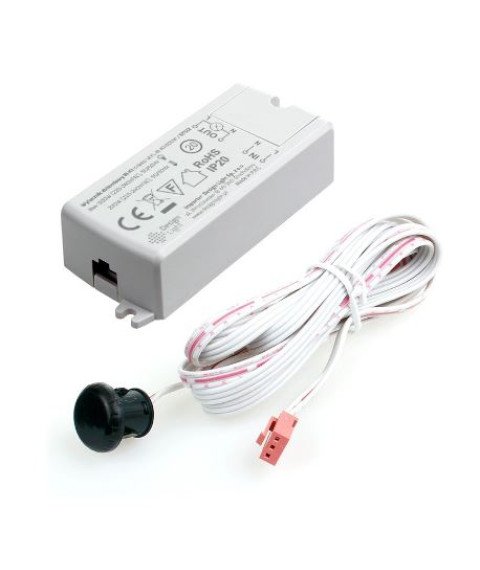

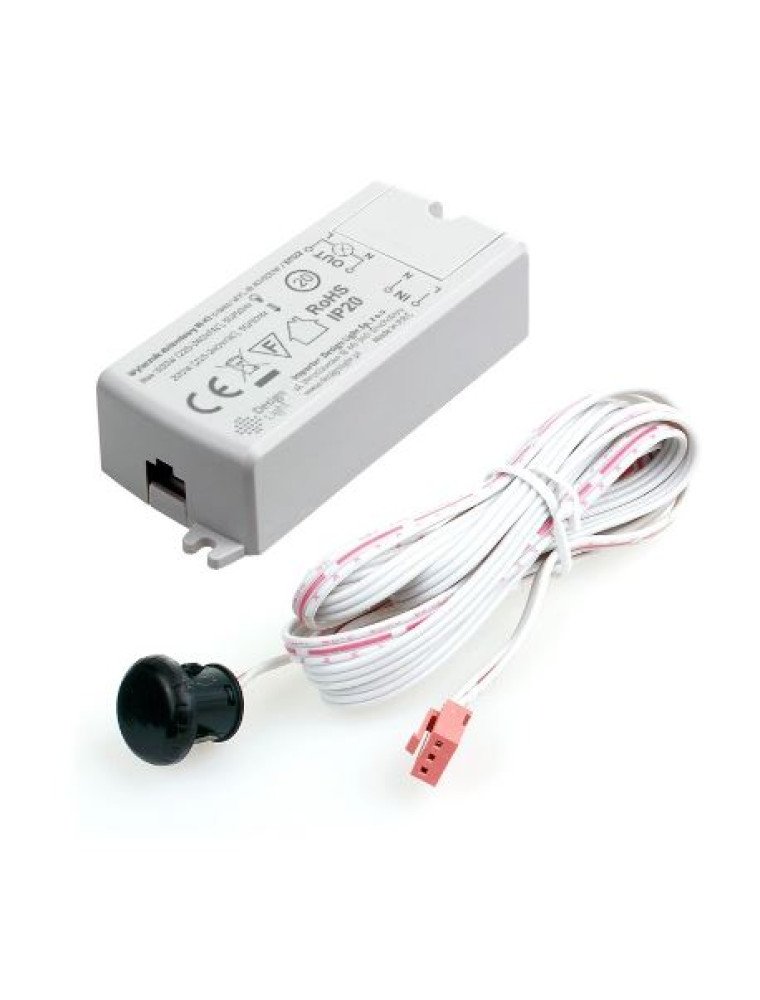

Proximity switch IR K1 500W 220-240V
- Product Code: 970066
- Availability: In Stock - Immediate Delivery
-
18.50€
- Ex Tax: 15.68€
- Price in reward points: 25
Tags: Proximity switch, IR, K1, 500W, 220-240V
