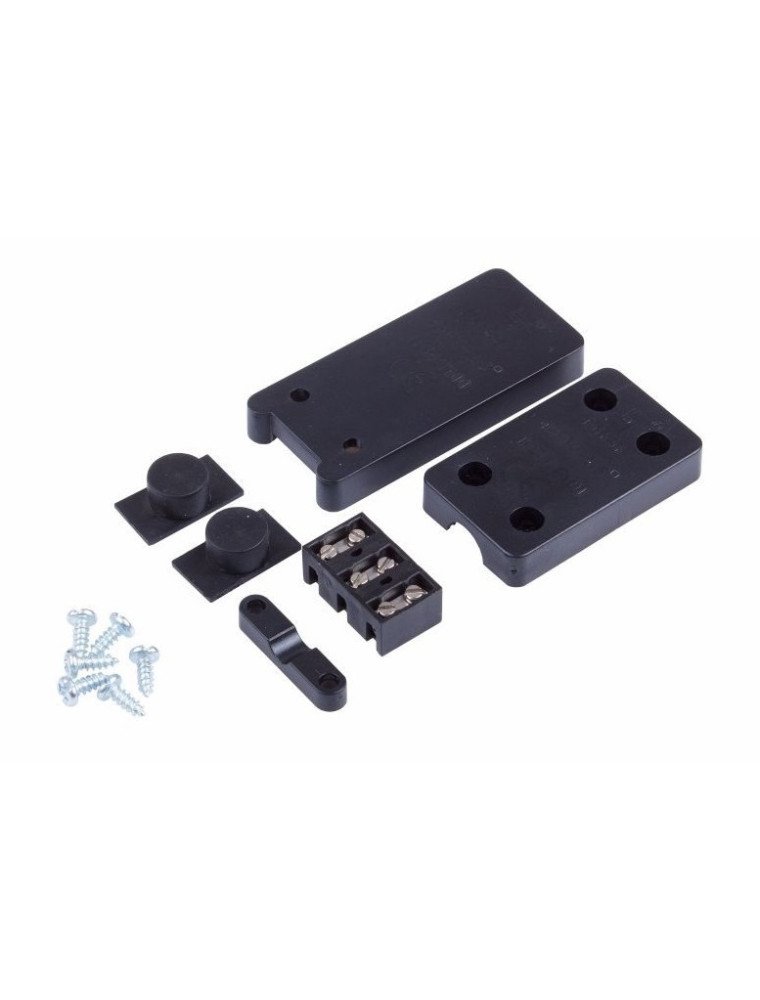

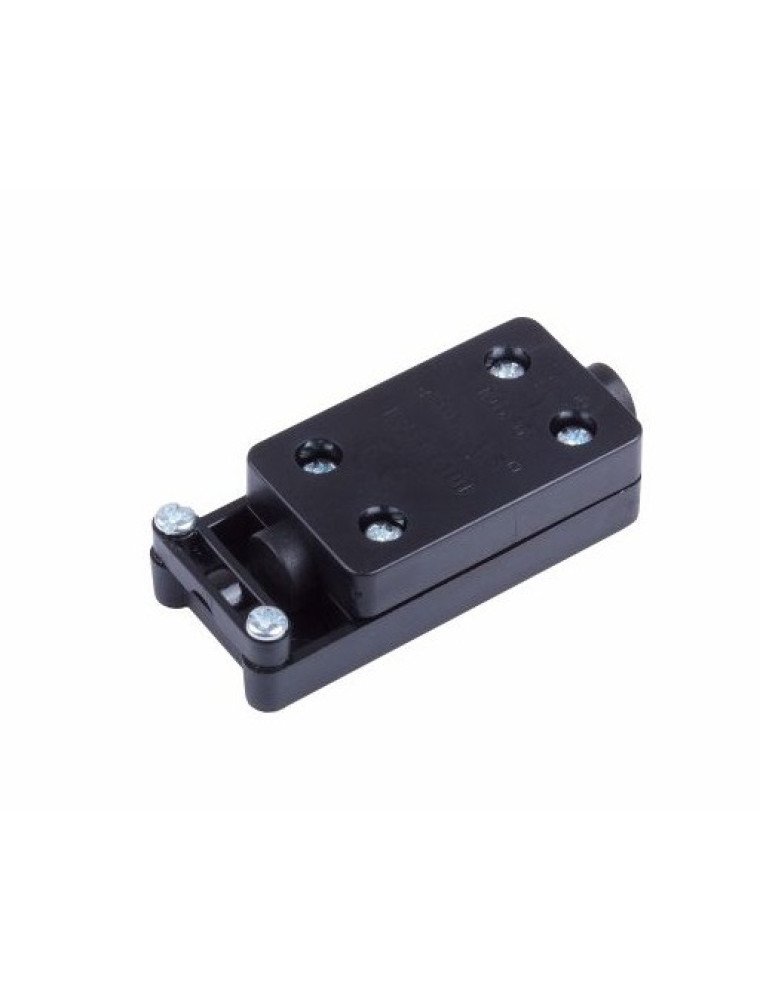

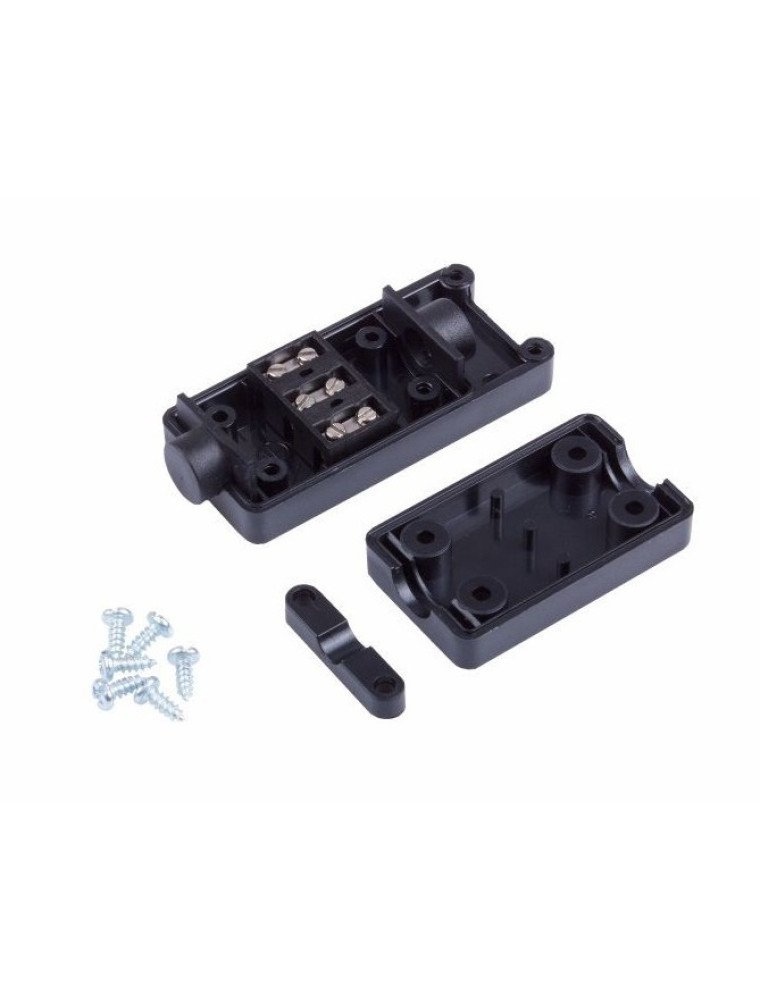

The black insulated connector is used in places with high humidity, e.g. bathrooms, to connect the lighting to the 230V network.
The product has a degree of protection IP54 (protection against dust and water splashes) ensuring safety and continuity of insulation while applying a high degree of tightness.
The maximum voltage is 450V, and the maximum current is 17.5A. The working temperature is 100°C
A wire with a cross-section of 0,75 mm to 1,5 mm2 should be used for the connector.
Catalog number 970016
Body Color Black
Brand -
Connection Mode 3 core cables
EAN Code N/A
Input voltage 230V AC
IP 54
Items per box 40
Items per pack 1
Material Plastic
Operating Frequency -
Output N/A
Output Current N/A
Output Power 2A
Size of package N/A

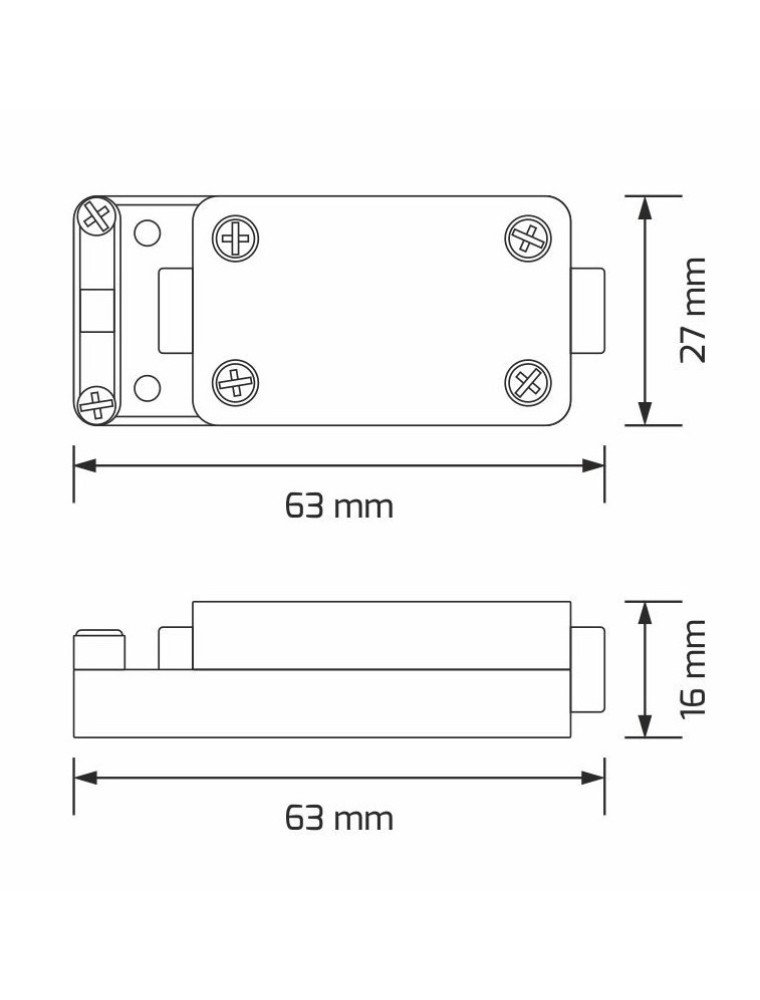

Size of product 63x27 mm
Product Code GNI-ZLA-IP54-V2
Static Power Consumption N/A
Weight of Product 50 gr.
Black IP54 connector for connecting wires
- Product Code: 970016
- Availability: In Stock - Immediate Delivery
-
5.31€
- Ex Tax: 4.50€
- Price in reward points: 25
